Coaxial Type N Directional Couplers

Type N Directional Coupler

Type N Directional Coupler

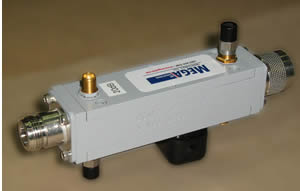

Mega’s Type N couplers are ideal for your low power measurement needs. These low cost couplers are compact and designed to go inline wherever you have a Type N cable type connection. With flat coupling and high directivity over the typical 10% bandwidth, these devices are a high value option for system integration applications. Power handling is typically 200 Watts, or more depending upon frequency and coupling value chosen.


Typical Electrical Response
Coupling Range 10 - 30 dB +/- 1 dB
VSWR 1.05:1
Directivity 25 dB Nominal
Bandwidth 10%

Type N Directional Coupler Options
