Waveguide Twists

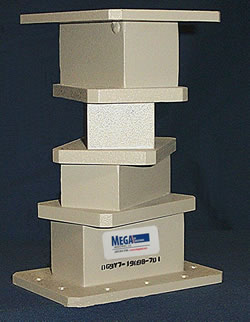

WR284 Waveguide Step Twist

WR284 Step Twist

When mechanical system packaging necessitates a change in the plane of polarization, Mega Industries waveguide step twists provide an accurate electrical and mechanical interface. Our compact three-step waveguide twist exhibits a VSWR less than 1.05:1 over a 10% bandwidth. Lower VSWR’s or increased bandwidth can be realized by utilizing a five-step twist.

Twist angles of 30°, 45°, 60° are also available. Continuous or smooth twists are aviailable in the smaller sizes. Please contact our sales department for more information.

Waveguide Twists Product Data Sheet
Rigid Twist Options
