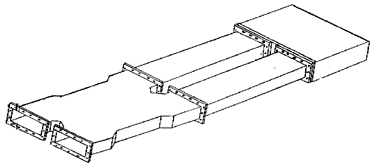

Waveguide Impedance Matchers. Mega Industries produces Waveguide Impedance Matchers in sizes ranging from WR-28 to WR-2300. For extremely high power applications, impedance matchers of the short slot hybrid design are utilized. Non-contacting, double bucket shorting assemblies, mounted on Teflon runners, are utilized for long term reliability. With an insertion loss characteristic of less than 0.05 db., maximum power transfer is assured for both manual and motorized units. Please see the Quote Request form below to explore commonly used materials, paint and flange configurations. Contact Mega Industries if you do not see the Waveguide Impedance Matcher configuration your high-power microwave application requires.
Mega produces a comprehensive line of high power, low frequency rigid and flexible waveguide products and accessories ranging in sizes from WR28 through WR2300. Larger sizes are offered through WR5900 upon special request.
Mega Industries waveguide impedance matchers are typically manufactured from 6061-T6 aluminum alloy, however, sizes WR090 through WR650 are available in either copper or aluminum alloys. Waveguide flanges and gaskets are provided in accordance with EIA and Military Specifications.
Mega Industries waveguide impedance matchers are manufactured to precise tolerances calculated to provide optimum VSWR and maximum power handling capabilities.
In addition to waveguide impedance matchers, Mega offers a complete line of components to complete or refurbish your systems. These include flexible waveguide, miter bends, sweep bends, quadrature hybrids, magic tees, folded tees, series and shunt tees, transformers, transition, gas barriers, couplers, terminations, circulators, phase shifters and tuners.
A trusted name in high power microwave technology since 1989, Mega Industries is a world leader in the design manufacture of microwave transmission equipment. Please contact Mega Industries about your specific waveguide impedance matcher needs.
