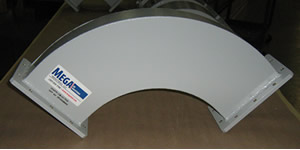

Waveguide Sweep Bends. Mega Industries produces Waveguide Sweep Bends in sizes ranging from WR-28 to WR-2300. Mega Industries utilizes the most advanced fabricating methods for the forming of precision waveguide sweep bends. Strict adherence to EIA dimensional tolerances insures a minimum reflection coefficient over the waveguide band. Typical VSWR is 1.05:1
Standard material used is 6061-T6 Aluminum; however these can also be supplied in Copper and Brass.
The radii listed below are the recommended dimensions for 90° bends; however, other radii and angles can be readily supplied to minimize system design costs. Units are available for both high pressure and high vacuum applications.
Pieces are available in full height (2:1 ratio) as well as reduced height configurations.
Please see the Quote Request form below to explore commonly used materials, paint and flange configurations. Contact Mega Sales if you do not see the Waveguide Sweep Bend configuration your high-power microwave application requires.
High-Power Microwave Specialists
Mega produces a comprehensive line of high power, low frequency rigid and flexible waveguide products and accessories ranging in sizes from WR28 through WR2300. Larger sizes are offered through WR5900 upon special request.
Mega Industries waveguide sweep bends are manufactured from 6061-T6 aluminum alloy, however, sizes WR090 through WR650 are available in either copper or aluminum alloys. Waveguide flanges and gaskets are provided in accordance with EIA and Military Specifications.
Mega Industries waveguide sweeps are manufactured to precise tolerances calculated to provide optimum VSWR and maximum power handling capabilities.
In addition to waveguide sweeps and bends, Mega offers a complete line of components to complete or refurbish your systems. These include flexible waveguide, miter bends, quadrature hybrids, magic tees, folded tees, series and shunt tees, transformers, transition, gas barriers, couplers, terminations, attenuators, phase shifters and tuners.
A trusted name in high power microwave technology since 1989, Mega Industries is a world leader in the design manufacture of microwave transmission equipment. Please contact Mega Industries about your specific waveguide sweep needs.
